Set Appliance State:
Mains Power Off
Water heater switch set to constant

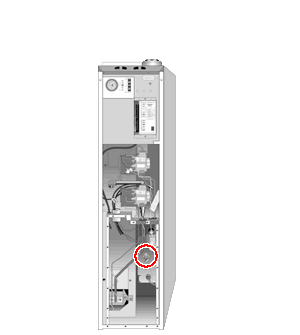

Set thermostat to MAX position
Set thermostat to MAX position
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Allow burner to ignite and system to run and burner shut down.
Measure temperature of flow.
Does thermostat operate and the burner shut down when temperature is reached?
Note: Maximum temperature differs if fitted to a direct (60 degrees C) or indirect (82 degrees C) system.
Measure temperature of flow.
Does thermostat operate and the burner shut down when temperature is reached?
Note: Maximum temperature differs if fitted to a direct (60 degrees C) or indirect (82 degrees C) system.
