G.C. Number 53 416 31
NB: This model only applies to the water circulator when fitted to the Johnson & Starley Economaire 32 GC number 42 416 14.
Ensure that the gas and electrical supplies are switched OFF.
Remove the front panel.

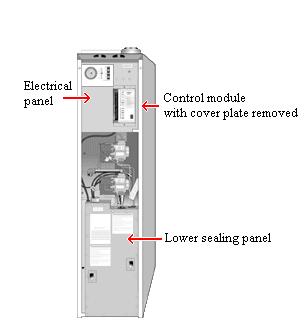

Control module
Loosen the top and bottom screws holding the electrical cover plate in place on the electrical door assembly.
Remove the cover plate by sliding it upwards.
The electrical door assembly hinges open to allow access behind.
Lower sealing panel
Remove the fixing screws that hold the sealing panel in place and carefully remove the panel.
