XSol Diagnostic System

RESISTANCE DHW THERMISTOR

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove connector from DHW sensor

Measurement:

Measure resistance across the exposed sensor terminals.
Is the resistance measured as expected?

wc greenstar style 8700 lower boiler.gif

wc greenstar style 8700 h02358 thr dhw lead disc.jpg



Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	23.0kΩ - 36.0kΩ
10°C to 20°C	15.0kΩ - 23.0kΩ
20°C to 30°C	9.8kΩ - 15.0kΩ
30°C to 40°C	6.7kΩ - 9.8kΩ
40°C to 50°C	4.7kΩ - 6.7kΩ
50°C to 60°C	3.4kΩ - 4.7kΩ
60°C to 70°C	2.5kΩ - 3.4kΩ
70°C to 80°C	1.8kΩ - 2.5kΩ
80°C to 90°C	1.4kΩ - 1.8kΩ
90°C to 100°C	1.0kΩ - 1.4kΩ

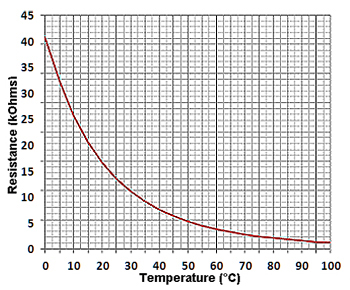

Note: Clicking on the resistance table will switch between table and graph view.
