XSol Diagnostic System

DHW TEMPERATURE SENSOR

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Measurement:

Remove grey wires from DHW temperature sensor.
Measure resistance across sensor terminals.

potterton puma 80 sit lower pcb removed.gif

potterton puma 80 dhw ntc resistor grey leads.gif

potterton puma 80 dhw ntc resistor.gif

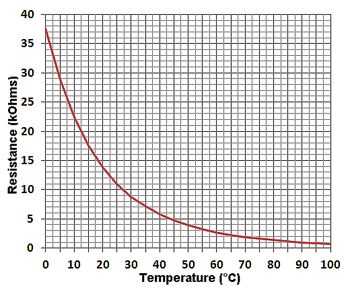

Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	22.0kΩ - 38.0kΩ
10°C to 20°C	14.0kΩ - 22.0kΩ
20°C to 30°C	8.8kΩ - 14.0kΩ
30°C to 40°C	5.8kΩ - 8.8kΩ
40°C to 50°C	3.9kΩ - 5.8kΩ
50°C to 60°C	2.7kΩ - 3.9kΩ
60°C to 70°C	1.9kΩ - 2.7kΩ
70°C to 80°C	1.4kΩ - 1.9kΩ
80°C to 90°C	1.0kΩ - 1.4kΩ
90°C to 100°C	700Ω - 1.0kΩ

Note: Clicking on the resistance table will switch between table and graph view.
