Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to DC Volts Set meter to measure DC Volts
Gain access to PCB (use Insulation Mat as required)
Boiler On
SUMMER/WINTER switch set to WINTER
System calling for heat
WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On

Measurement:

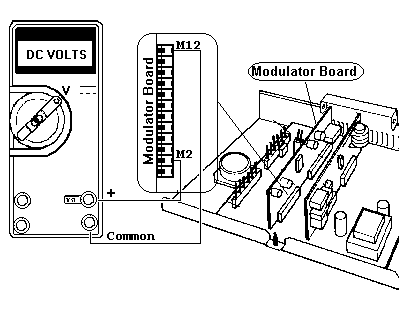

Measure the DC voltage between M2 (+ve) and M12 (common) on modulator board connector.
