Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to DC Volts Set meter to measure DC Volts
Gain access to PCB (use Insulation Mat as required)
Boiler On
System calling for heat
WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On

Measurement:

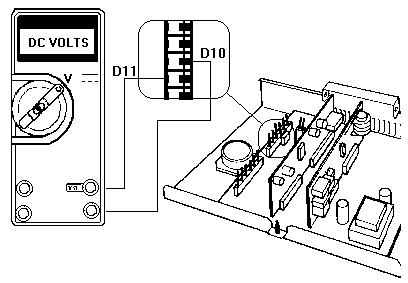

Measure the DC voltage between:
D11 (Orange wire) and D10 (Yellow wire) on the Distribution board.
This should be approximately 12V.
