Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Observation:

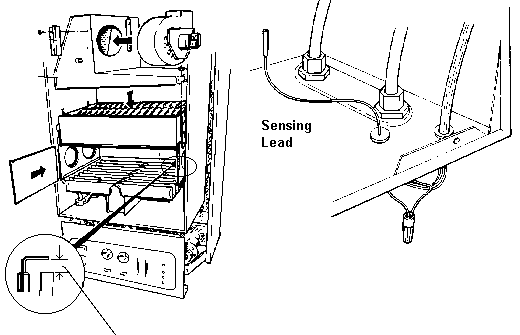

Check the Flame Sensor Electrode lead from the Full Sequence board to the electrode.
Check the flame sensor electrode gap, this should be between 3.5 and 4.5mm.
Note:
1. Ensure flame sensor lead (blue) is checked not ignition lead (white).
2. Check that the sensing lead from the electrode back to the board is continuous.
Check the flame sensor electrode gap, this should be between 3.5 and 4.5mm.
Note:
1. Ensure flame sensor lead (blue) is checked not ignition lead (white).
2. Check that the sensing lead from the electrode back to the board is continuous.
