Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to PCB (use Insulation Mat as required)
Boiler On
SUMMER/WINTER switch set to WINTER
System calling for Heat
Boiler On
SUMMER/WINTER switch set to WINTER
System calling for Heat
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

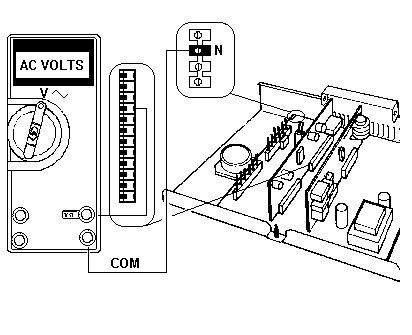

Measure the AC voltage between M21 terminal on Modulator board connector and the Neutral terminal.
WARNING!
Be careful not to short out adjacent points with meter probe.
WARNING!
Be careful not to short out adjacent points with meter probe.

Isolate as per TOPs P4
and refit as necessary
