Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to DC Volts
Gain access to PCB (use Insulation Mat as required)
Boiler On
SUMMER/WINTER switch set to the WINTER position
Make sure that room thermostat is calling for heat and timer/programmer is ON
Boiler On
SUMMER/WINTER switch set to the WINTER position
Make sure that room thermostat is calling for heat and timer/programmer is ON
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

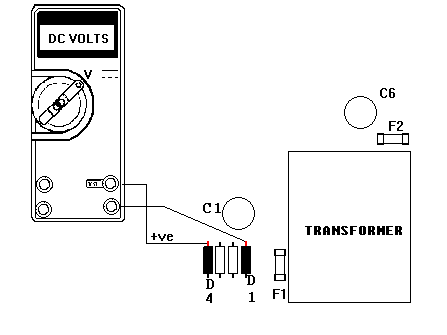

Measure the DC voltage between diode D4 and diode D1 (ends near to capacitor C1) on distribution board.
NB: It is important that test is carried out at correct test points i.e. diode connections nearest the capacitor marked C1 (connections farthest from the front with the control panel down).
NB: It is important that test is carried out at correct test points i.e. diode connections nearest the capacitor marked C1 (connections farthest from the front with the control panel down).
Isolate as per TOPs P4
and refit as necessary
