RESISTANCE THERMISTOR FLUE

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Disconnect plug for thermal fuse / flue thermistor

Measurement:

Measure the resistance across the thermistor component of the combined thermistor / fuse.
Thermal fuse / thermistor is factory fitted with the catch at the top but can also
be rotated by 180°, refer to pictures and ensure test is done against correct pins.

bi advance 35c j54360 thr fus flue flipped.jpg

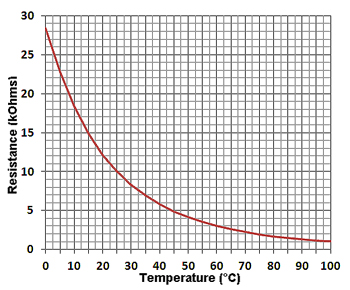

Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	18.0kΩ - 28.0kΩ
10°C to 20°C	12.0kΩ - 18.0kΩ
20°C to 30°C	8.3kΩ - 12.0kΩ
30°C to 40°C	5.7kΩ - 8.3kΩ
40°C to 50°C	4.1kΩ - 5.7kΩ
50°C to 60°C	3.0kΩ - 4.1kΩ
60°C to 70°C	2.2kΩ - 3.0kΩ
70°C to 80°C	1.7kΩ - 2.2kΩ
80°C to 90°C	1.3kΩ - 1.7kΩ
90°C to 100°C	1.0kΩ - 1.3kΩ

Note: Clicking on the resistance table will switch between table and graph view.
