Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Gain access to PCB (use Insulation Mat as required)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

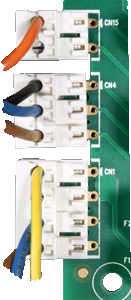

Measure the AC voltage between Pin 3 (Brown) and Pin 2 (Blue) at connector CN4.
Expect mains voltage.
Expect mains voltage.

Isolate as per TOPs P4
and refit as necessary
