INSPECTION PARAMETER 15 (NO OUTDOOR SENSOR)

Set Appliance State:

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure

Mains Power On

Observation:

Check parameter 15 is set for no outdoor sensor.
Step 1:

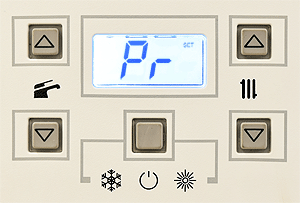

Hold the power and both radiator buttons (fig 1) together
for 10 seconds until the display alternates Pr and 01.
PARAMETER 15 ALREADY SET CORRECTLY
PARAMETER 15 REQUIRED ADJUSTMENT

fig. 1

fig. 2

fig. 3

Step 2:
Press radiator up button until display alternates Pr and 15

Step 3:
Press the power and radiator up buttons together then release.

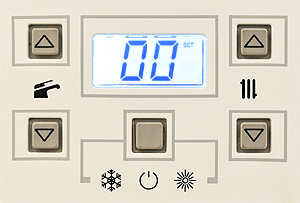

Display must show 00 - if it shows any other value it is set incorrectly.

To adjust use the radiator up and down buttons to change then press the power button to save.
