Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Measurement:

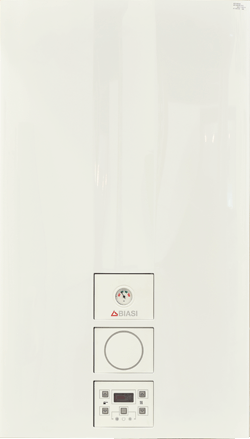

CASE REMOVAL
Undo the two screws on the bottom edge of the front case, ease the bottom of the case outwards and then lift off the top edges.
The front fascia can then be lowered to gain access to the lower section of the appliance.
Note:
The side panels can be removed by slackening the two screws top and bottom securing each side panel, they can then be slid off sideways.
Undo the two screws on the bottom edge of the front case, ease the bottom of the case outwards and then lift off the top edges.
The front fascia can then be lowered to gain access to the lower section of the appliance.
Note:
The side panels can be removed by slackening the two screws top and bottom securing each side panel, they can then be slid off sideways.
