Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
INFORMATION CASE REMOVAL

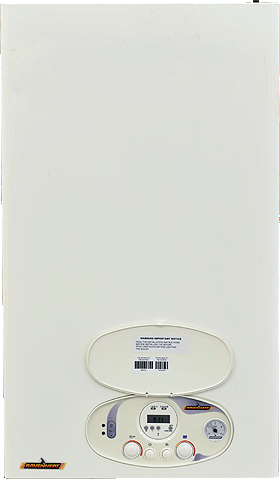

Outer Case:
Unscrew the 4 screws that fasten the lower grating to the underside of the appliance and remove.
Remove the 4 screws, 1 each corner then slide case forward and lift off
Unscrew the 4 screws that fasten the lower grating to the underside of the appliance and remove.
Remove the 4 screws, 1 each corner then slide case forward and lift off

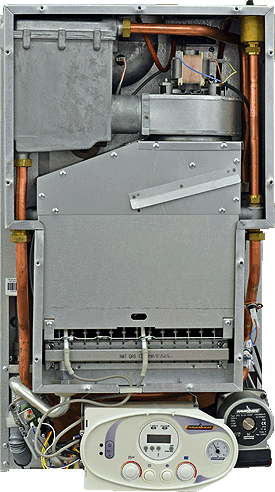

Fascia / PCB Access
To lower the front fascia remove 2 screws at the bottom of the housing, fascia will angle down
To access the PCB push 2 clips on the right hand side of the housing in gently and push forwards and out.
To lower the front fascia remove 2 screws at the bottom of the housing, fascia will angle down
To access the PCB push 2 clips on the right hand side of the housing in gently and push forwards and out.
Combustion Cover:
Remove the 13 screws and remove cover.
Remove the 13 screws and remove cover.
