Set Appliance State:
Mains Power Off
Gas Off
Turn Hot Water Tap On
Selector switch to hot water position
CH temperature selector to minimum
DHW temperature selector to maximum
CH temperature selector to minimum
DHW temperature selector to maximum
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

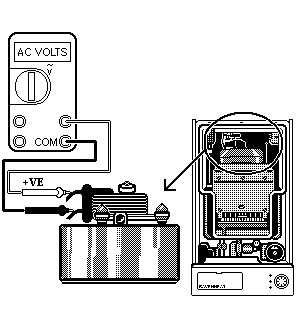

Check for mains voltage across the live (brown wire) and the neutral (blue wire) connections at the fan.

Isolate as per TOPs P4
and refit as necessary
