Set Appliance State:
Mains Power Off
Gas Off
CH Demand
Purge Switch in NORMAL position
HW Switch in OFF position
CH Switch in CH Continuous position
CH Potentiometer set to maximum
HW Switch in OFF position
CH Switch in CH Continuous position
CH Potentiometer set to maximum
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Allow the Fan to operate.

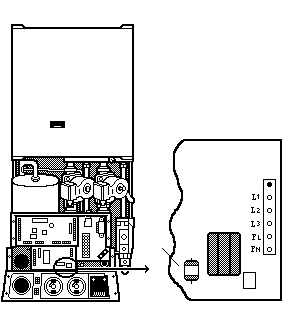

Sparking should occur in the Ignition Spark Tube marked SG1 located on the Ignition PCB.
Sparking should occur in the Ignition Spark Tube marked SG1 located on the Ignition PCB.
