Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
Purge Switch in NORMAL position
HW Switch in ON position
HW Potentiometer set to maximum
Remove Plastic Cap on Modureg
HW Switch in ON position
HW Potentiometer set to maximum
Remove Plastic Cap on Modureg
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Allow boiler to complete its ignition sequence.

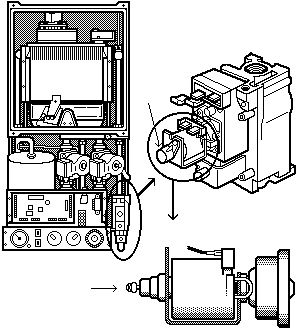

As burner lights at full rate is the plunger on Modureg pulled in to the solenoid.
As burner lights at full rate is the plunger on Modureg pulled in to the solenoid.
Isolate as per TOPs P4
and refit as necessary
