Set Appliance State:
Mains Power Off
Gas Off
CH Demand
Purge Switch in NORMAL position
HW Switch in ON position
CH Switch in CH Timed position
CH Potentiometer set to maximum
HW Switch in ON position
CH Switch in CH Timed position
CH Potentiometer set to maximum
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

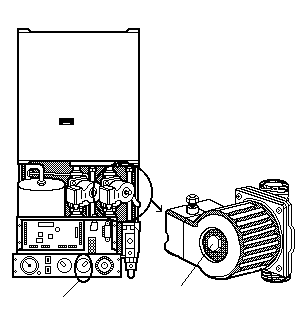

With the CH Timer calling for a demand does the CH Pump operate?
Note:
Do not take noise or vibration as a sign of pump operation.
Note:
Do not take noise or vibration as a sign of pump operation.
