Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Measurement:
G.C. 47 415 09
Front panel removal -

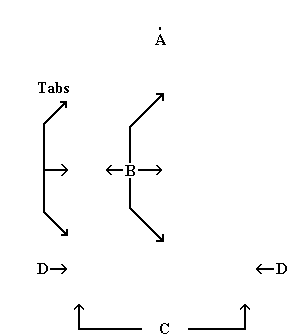

Slacken the screw (A) located at the centre top of the
boiler and lift off the front panel.
Inner panel removal -
Remove the 4 screws (B) and pull out the tabs from the slots.
Control panel removal -
Slacken the two screws located at the underside of the boiler (C)
and remove the two screws on the sides of the boiler (D).
Front panel removal -
Slacken the screw (A) located at the centre top of the
boiler and lift off the front panel.
Inner panel removal -
Remove the 4 screws (B) and pull out the tabs from the slots.
Control panel removal -
Slacken the two screws located at the underside of the boiler (C)
and remove the two screws on the sides of the boiler (D).
