FAN IMPELLER
Isolate Mains Power to appliance as per TOPs P4
Observation:

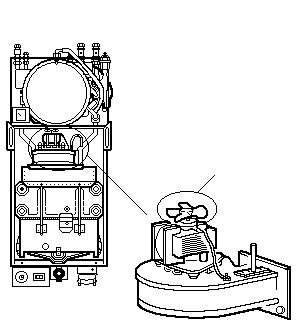

Check that the fan cooling impeller is correctly located on its shaft, and that it is undamaged (all blades intact) and free to rotate.
Impeller
FAN IMPELLER UNDAMAGED AND CORRECTLY LOCATED
FAN IMPELLER DAMAGED OR INCORRECTLY LOCATED
