Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Observation:

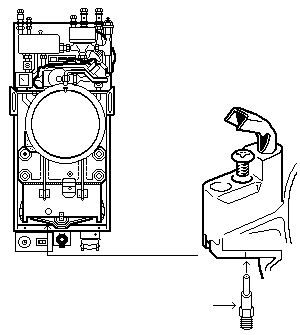

Remove the burner to gain access to the pilot. Remove the pilot injector and check it for signs of damage or blockages.
Note:
Upon reassembly all disturbed joints should be checked for gas tightness.
Note:
Upon reassembly all disturbed joints should be checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
