Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4

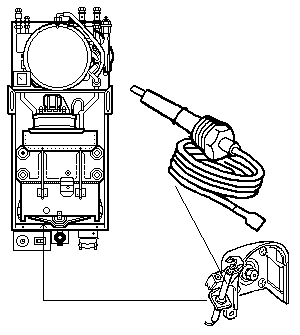

Remove the burner to gain access to the spark electrode
Remove the spark electrode and lead assembly
Remove the burner to gain access to the spark electrode
Remove the spark electrode and lead assembly
Measurement:
Check the electrode and its lead for signs of physical damage, cracked ceramic or insulation.
Also carry out a resistance check from the tip of the electrode to the spade connector at the end of the lead.
Expect continuity.
Note:
Before reassembly check the integrity of all disturbed gaskets and seals and replace as necessary.
Also carry out a resistance check from the tip of the electrode to the spade connector at the end of the lead.
Expect continuity.
Note:
Before reassembly check the integrity of all disturbed gaskets and seals and replace as necessary.

Isolate as per TOPs P4
and refit as necessary
