PCB 26: FUSE
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Observation:

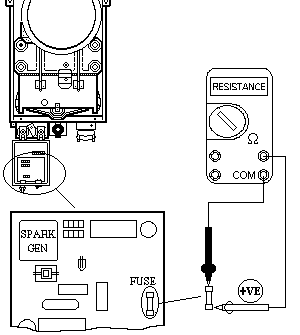

Remove fuse FS1 located on PCB 26 and measure resistance.
Replace fuse after test.
FUSE SHORT CIRCUIT
FUSE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
