DRY FIRE THERMOSTAT (RESISTANCE)
Set Appliance State:
Mains Power Off
Gas Off
Set Multimeter to Resistance
Remove spaded red wires from dry fire thermostat (located top L/H side of the primary heat exchanger)
Measurement:

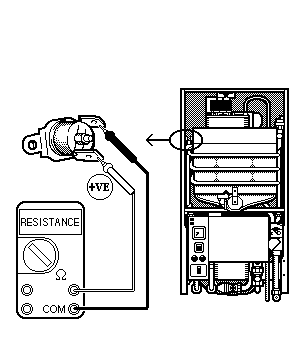

Measure resistance across the exposed terminals of the thermostat.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
