Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Attach pressure gauge to fan pressure test point
Unclip Diverter Valve head from the body and leave in a safe location
Unclip Diverter Valve head from the body and leave in a safe location
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Operate appliance at maximum output using service mode.
FOR INSTRUCTIONS ON SERVICE MODE CLICK HERE

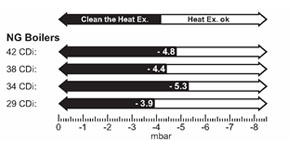

Fan pressure will be negative and should conform to the table below.
FOR INSTRUCTIONS ON SERVICE MODE CLICK HERE

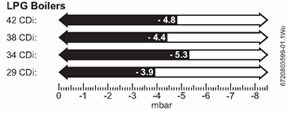

Fan pressure will be negative and should conform to the table below.
