Set Appliance State:
Mains Power Off
Preheat switched OFF (ECO button illuminated)
Turn hot water tap on with a flow rate of approximately 3 l/min
Turn hot water tap on with a flow rate of approximately 3 l/min
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance as necessary (hold reset button for 5 seconds then release).
Can the burner be heard to ignite and establish?
Note:
1. It can take up to approximately 20 seconds for the ignition sequence to begin after a DHW demand.

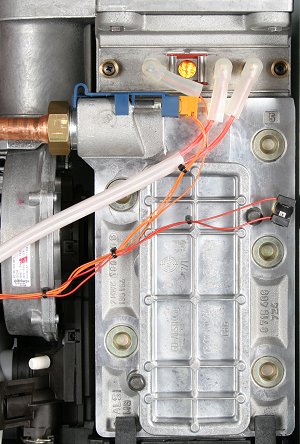

2. On some versions the flame can be seen via the viewing window at the top of the heat exchanger.
Can the burner be heard to ignite and establish?
Note:
1. It can take up to approximately 20 seconds for the ignition sequence to begin after a DHW demand.
2. On some versions the flame can be seen via the viewing window at the top of the heat exchanger.
 in situ.jpg)
