Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

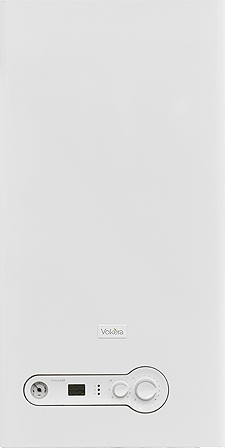

VOKERA UNICA I32
1. Outer Case
3 screws at bottom of appliance, rear left & right and front centre then lift upwards to remove.
2. Combustion Chamber + Side Panels
2 clips to remove front panel then 2 screws for each side panel.
3. Terminal Block
1 screw then unclip to expose mains connections.
4. PCB Access
4 screws each corner and 4 corresponding clips then lift up.
