C.H FLOW SWITCH DIAPHRAGM
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Boiler discharged and drained
Observation:

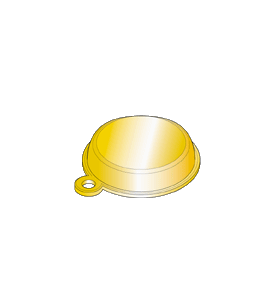

Inspect the DHW flow switch diaphragm for splits or damage?
DIAPHRAGM IN GOOD CONDITION
DIAPHRAGM DAMAGED OR NOT IN GOOD CONDITION
