RESISTANCE DHW THERMISTOR

Set Multimeter to Resistance

Isolate Mains Power to appliance as per TOPs P4
Disconnect the inline connector to the DHW thermistor

Measure resistance across the thermistor at the connector that runs to the sensor.

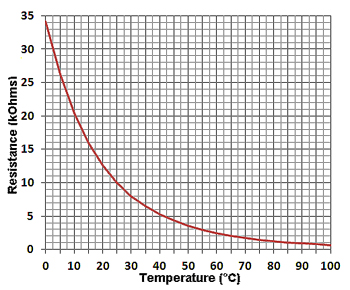

Resistances vary with temperature and should conform approximately to the table below:

Note: Clicking on the resistance table will switch between table and graph view.
