Set Appliance State:
Set Multimeter to AC Volts
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Link pins 1 and 2 of five pole connector on mounting frame
Link pins 1 and 2 of five pole connector on mounting frame
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

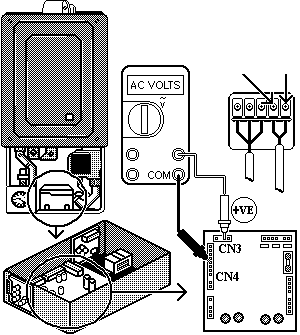

Measure Mains voltage across connectors CN4 connection 5 (L Brown) and CN3 connection 2 (N Blue).
Expect mains voltage.
Note:
This test bypasses all external controls.
Expect mains voltage.
Note:
This test bypasses all external controls.
Isolate as per TOPs P4
and refit as necessary
