Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Selector Switch OFF
Gas Control Knob in Main Burner position
Selector Switch OFF
Gas Control Knob in Main Burner position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

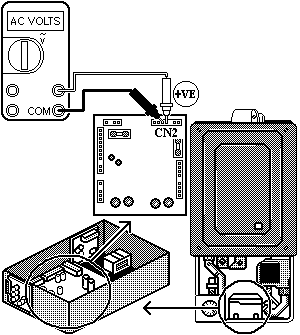

After 30 seconds of operation measure the Slow Fan voltage across connections Fan L (Red) and Fan N (Purple) on connector CN2.
This should be in the range 160 - 180 V AC.
This should be in the range 160 - 180 V AC.

Isolate as per TOPs P4
and refit as necessary
