Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Remove knob from CH Potentiometer on Main PCB
Remove knob from CH Potentiometer on Main PCB
Measurement:

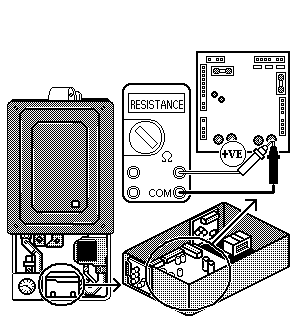

Measure across left and right terminals of DHW Burner Pressure Potentiometer.
Resistance should be approximately 4.5 kOhms.
Replace knob.
Note: Do Not Adjust this Potentiometer.
Resistance should be approximately 4.5 kOhms.
Replace knob.
Note: Do Not Adjust this Potentiometer.

Isolate as per TOPs P4
and refit as necessary
