FUSE FS2
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

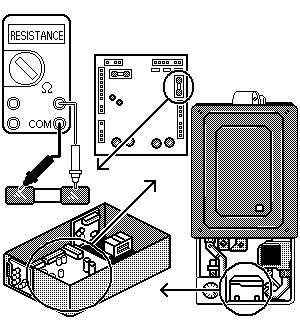

Remove Fuse FS2 from Control Board and check the resistance is a short circuit.
Replace Fuse after the test.
SHORT CIRCUIT
OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
