Set Appliance State:
Mains Power Off
Gas On; Pilot On
Turn Hot Water Tap On
Selector Switch OFF
Gas Control Knob in Main Burner position
Gas Control Knob in Main Burner position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Remove Hot Water demand.

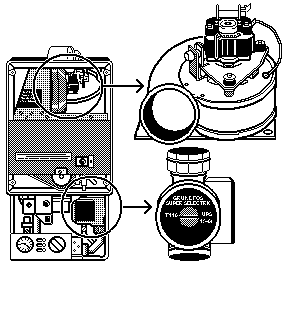

Does the fan continue to run and does the pump start up?
Note:
Do not take sound or vibration as an indication of operation.
Does the fan continue to run and does the pump start up?
Note:
Do not take sound or vibration as an indication of operation.
Isolate as per TOPs P4
and refit as necessary
