Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4

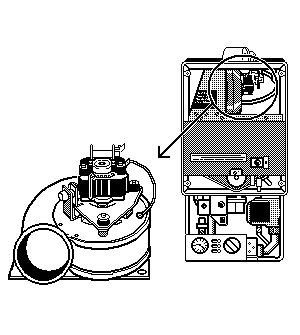

Gain access to the combustion chamber to observe the fan
Ensure NO demands
Gain access to the combustion chamber to observe the fan
Ensure NO demands
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
The fan should run at high speed for approximately 30 seconds, it should then slow down and continue to run slowly.
Does the fan behave as described?
Does the fan behave as described?
