G.C. Number 47 313 08
Outer case removal
The door opens to the left or right hand side. The door is spring loaded, to open, push the side opposite to the hinge then pull.

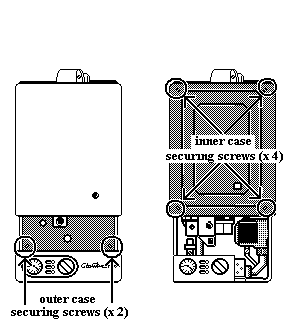

Remove the two screws securing the outer case then unhook the case at the top and pull forwards and off.
Inner case removal
Remove the cover of the inner case, secured by the four screws.
Outer case removal
The door opens to the left or right hand side. The door is spring loaded, to open, push the side opposite to the hinge then pull.
Remove the two screws securing the outer case then unhook the case at the top and pull forwards and off.
Inner case removal
Remove the cover of the inner case, secured by the four screws.
Isolate as per TOPs P4
and refit as necessary
