Set Appliance State:
On/Off Switch OFF
Isolate Mains Power to appliance as per TOPs P4
Observation:

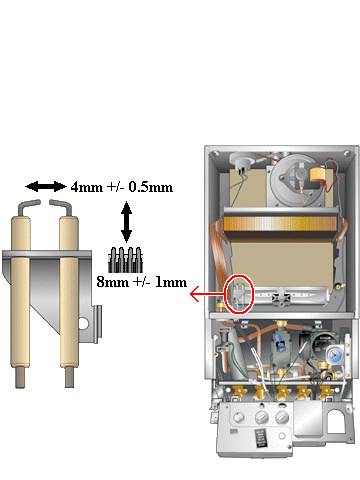

Inspect the ignition electrode for correct fitting, gap and condition.
The electrode gap, between the tips should be 4mm +/- 0.5mm and between the tips and the burner 8mm +/- 1mm.
The electrode gap, between the tips should be 4mm +/- 0.5mm and between the tips and the burner 8mm +/- 1mm.
