RESISTANCE PRIMARY SENSOR AT SENSOR

Set Appliance State:

Set Multimeter to Resistance

Isolate Mains Power to appliance as per TOPs P4
Remove one of the wires from the primary sensor

Measurement:

Measure the resistance across the terminals of the sensor.

wc 24 si 2 comb and burner case off before fd387.gif

wc 24 si 2 e88171 thr one lead disc.gif




Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	24.0kΩ - 41.0kΩ
10°C to 20°C	15.0kΩ - 24.0kΩ
20°C to 30°C	9.6kΩ - 15.0kΩ
30°C to 40°C	6.3kΩ - 9.6kΩ
40°C to 50°C	4.3kΩ - 6.3kΩ
50°C to 60°C	2.9kΩ - 4.3kΩ
60°C to 70°C	2.1kΩ - 2.9kΩ
70°C to 80°C	1.5kΩ - 2.1kΩ
80°C to 90°C	1.1kΩ - 1.5kΩ
90°C to 100°C	800Ω - 1.1kΩ

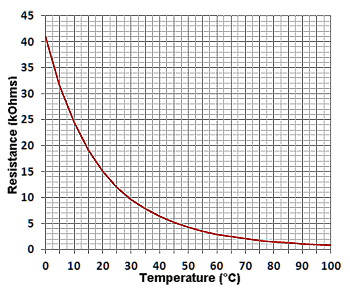

Note: Clicking on the resistance table will switch between table and graph view.
