Set Appliance State:
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4

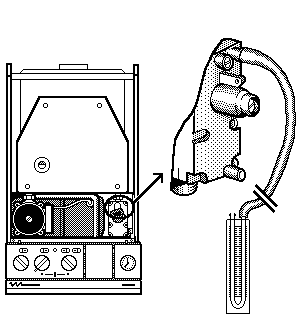

Attach a U-gauge to the outlet pressure test point
Attach a U-gauge to the outlet pressure test point
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Allow boiler to commence its ignition sequence.
Does U-gauge show a positive gas pressure?
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
Does U-gauge show a positive gas pressure?
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
Isolate as per TOPs P4
and refit as necessary
