FUSE F2 (1.25 AMP)
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4

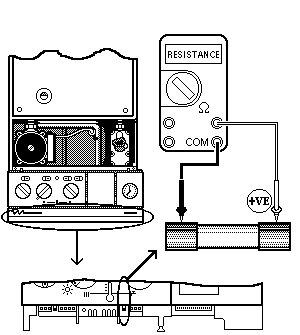

Remove fuse F2 from PCB
Measurement:
Check resistance of the fuse.
SHORT CIRCUIT MEASURED
OPEN CIRCUIT MEASURED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
