Isolate Mains Power to appliance as per TOPs P4
G.C. Number 47 311 29

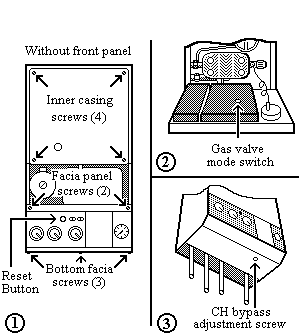

Case removal
Front panel
Remove by lifting off supports.
Inner Case
Ensure electricity supply to appliance is off, remove 4 screws and lift off.
Bottom Facia Panel
Ensure electricity supply to appliance is off, remove 3 screws from base
of panel and remove.
Facia Panel
Ensure electricity supply to appliance is off, remove 2 screws and hinge down taking care not to damage pressure gauge capillary tube or electrical connections.
Notes:
The appliance has two lockout conditions one can be reset by turning the electricity supply off and on again. The other can only be reset by depressing the reset button on the facia panel for a minimum of 1 second (the electricity supply and boiler on/off switch must be on when button is depressed).
On the rear of the control box is a gas valve mode switch this should be in the position marked NORMAL.
CH system by-pass has an adjustment screw which is accessible through an aperture in the base of the appliance on the R/H side.
