Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4

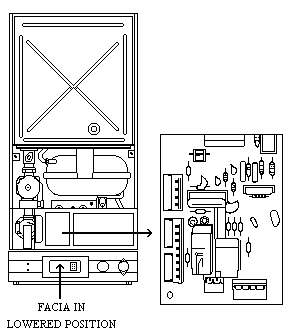

Disconnect 9 pin connector marked CN3 on the ignition PCB
Disconnect 9 pin connector marked CN3 on the ignition PCB
Measurement:
Test 1:
Measure the resistance between the top (nearest to earth wire)
blue and brown wires at CN3.
Resistance will vary by gas valve but should be approximately 1 - 7kOhms.
Test 2:
Measure the resistance between the bottom blue and brown wires at CN3.
Resistance will vary by gas valve but should be approximately 1 - 7kOhms.
Test 3:
Measure the resistance between both of the brown wires,
in turn, to a suitable earth point.
Resistance should be greater than 1M Ohm on both wires.
Measure the resistance between the top (nearest to earth wire)
blue and brown wires at CN3.
Resistance will vary by gas valve but should be approximately 1 - 7kOhms.
Test 2:
Measure the resistance between the bottom blue and brown wires at CN3.
Resistance will vary by gas valve but should be approximately 1 - 7kOhms.
Test 3:
Measure the resistance between both of the brown wires,
in turn, to a suitable earth point.
Resistance should be greater than 1M Ohm on both wires.

Isolate as per TOPs P4
and refit as necessary
