FUSE F1
Set Appliance State:

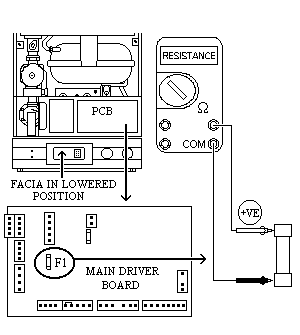

Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Gain access to PCB (use insulation mat as required)
Measurement:
Check Fuse F1 is short circuit.
FUSE SHORT CIRCUIT.
FUSE OPEN CIRCUIT.
