Set Appliance State:
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Remove one wire from the modulating coil

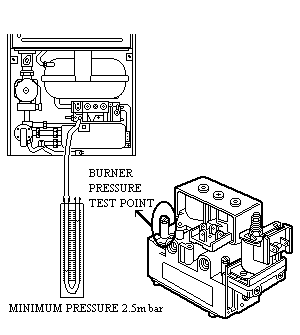

Attach a U gauge to the burner pressure test point
Remove one wire from the modulating coil
Attach a U gauge to the burner pressure test point
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Measure the minimum burner pressure
Expected pressure approximately 2.5mb
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Expected pressure approximately 2.5mb
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
