Set Appliance State:

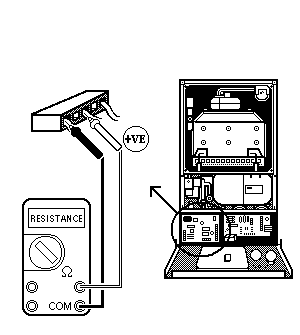

Set Multimeter to Resistance Set meter to measure resistance
Isolate Mains Power to appliance as per TOPs P4
Unplug connector X17 from sequence board

Measurement:

Measure resistance between connection 1 (red wire) and connection 3 (brown wire) at the disconnected plug, (resistance should be approximately 350ohms).
