FUSE F2 (RESISTANCE)
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4

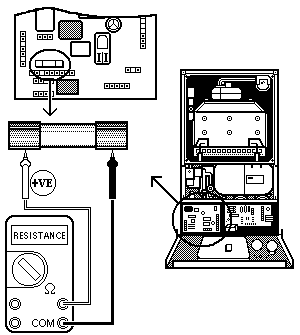

Remove fuse from sequence board
Measurement:
Check resistance of fuse.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
