Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Remove ignition lead from spark generator

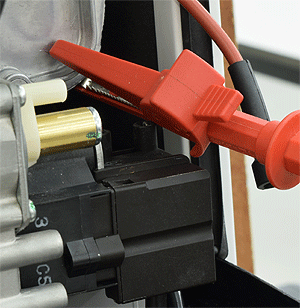

Place crocodile clip above spark generator as shown in the picture
Place crocodile clip above spark generator as shown in the picture
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Warning: Do not touch any part of appliance during this test.
At the sparking stage of the ignition sequence (when 4 is shown on display) can sparking been seen from the spark generator to the crocodile clip?
Note:
Boiler will attempt ignition 3 times before lockout,
reset as necessary until test complete.
At the sparking stage of the ignition sequence (when 4 is shown on display) can sparking been seen from the spark generator to the crocodile clip?
Note:
Boiler will attempt ignition 3 times before lockout,
reset as necessary until test complete.
Isolate as per TOPs P4
and refit as necessary
