Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to DC Volts
Gain access to PCB (use Insulation Mat as required)
Remove fan PCB cover if required
Remove fan PCB cover if required
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
This test can be carried out during the purge cycle.

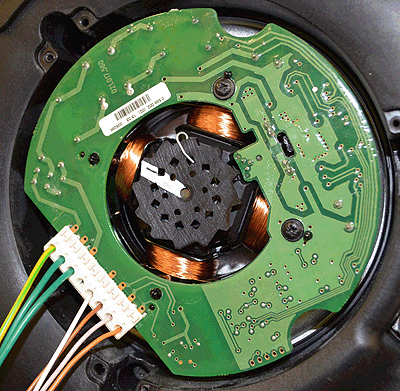

Measure the DC voltage between the pin 6 (brown) on the fan connector to a suitable earth point.
Expect approximately 6.3 Vdc.
Measure the DC voltage between the pin 6 (brown) on the fan connector to a suitable earth point.
Expect approximately 6.3 Vdc.
Isolate as per TOPs P4
and refit as necessary
