Set Appliance State:
Mains Power Off
Gas Off
Rotary Switch to DHW position
DHW Temperature Control To Maximum
Hold in Boiler Case Switch
DHW Temperature Control To Maximum
Hold in Boiler Case Switch
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

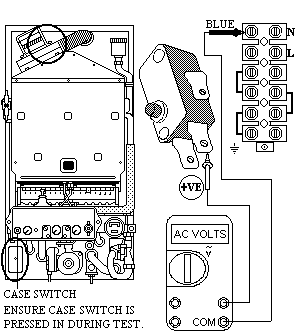

Whilst pressing Ignition button, measure Mains Voltage across uppermost White wire on Air Pressure Switch and Neutral (Blue).

Isolate as per TOPs P4
and refit as necessary
