CH LIMIT THERMOSTAT
Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

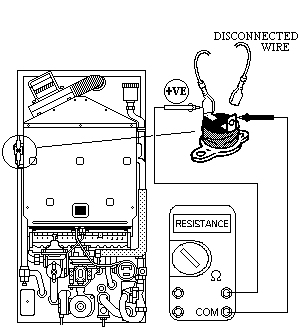

Remove one White wire from thermostat. Check resistance of thermostat.
THERMOSTAT SHORT CIRCUIT
THERMOSTAT OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
